PANEL SPECIFICATIONS
Panel Joints

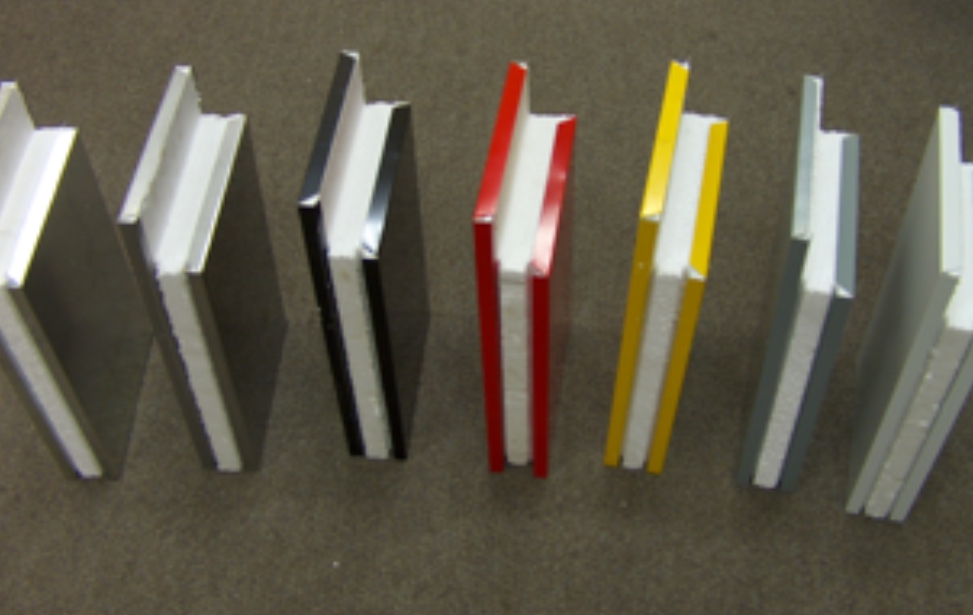

Panels are manufactured with tongue and groove (male/female) connectors. Panel World is one of the few panel manufacturers in the world that produces panels where the top and bottom sections are finished off with a 90º bend. This does not only ensure absolute accuracy on the length of the panel, but also adds to its durability.
| Panel Thickness | 40mm - 300mm |
|---|---|
| Insulation | Fire retardant polystyrene 15kg / 20kg / 24kg / 32kg cubic meter density. Polyurethane 35kg density |

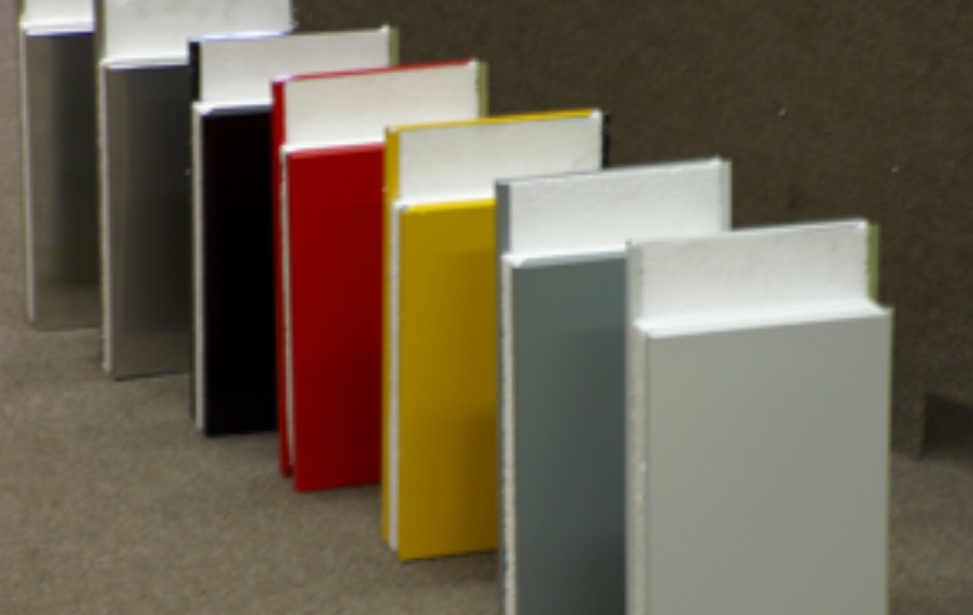

| Cladding | Chromadek (pre-painted steel) – galvanised steel/stainless steel, 0.5mm or 0.6mm thick. |
| Alternative Cladding | Vescoline |
| Stainless Steel | Chromadek in and out with stainless steel front. All parts and other surfaces are either made of stainless steel, galvanised steel or electroplated steel. |
| Galvanised | Chromadek in and out with stainless steel front. All parts and other surfaces are either made of stainless steel, galvanised steel or electroplated steel. |
| Bonding | Two part poly – isocyanate adhesive. |
| Panel Length | From 0.5m to 13m |
Standard Panels (Most cost effective, but all panels can be customised.)
| Number of Panels | Size | Number of Panels | Size | |
|---|---|---|---|---|
| 1 | 1,170 | 1 1/2 | 1,730 | |
| 2 | 2,340 | 2 1/2 | 2,900 | |
| 3 | 3,510 | 3 1/2 | 4,070 | |
| 4 | 4,680 | 4 1/2 | 5,240 | |
| 5 | 5,850 | 5 1/2 | 6,410 | |
| 6 | 7,020 | 6 1/2 | 7,580 | |
| 7 | 8,200 | 7 1/2 | 8,760 | |
| 8 | 9,370 | 8 1/2 | 9,930 | |
| 9 | 10,540 | 9 1/2 | 11,100 | |
| 10 | 11,710 | 10 1/2 | 12,270 | |
| 11 | 12,880 | 11 1/2 | 13,440 | |
| 12 | 14,050 | 12 1/2 | 14,610 | |
| 13 | 15,220 | 13 1/2 | 15,780 | |
| 14 | 16,400 | 14 1/2 | 16,960 | |
| 15 | 17,570 | 15 1/2 | 18,120 | |
| 16 | 18,740 | 16 1/2 | 19,300 | |
| 17 | 19,910 | 17 1/2 | 20,470 |
